COMMERCIAL REEL, 30 FOOT CORD, TRIPLE OUTLET (2630-3000)
COMMERCIAL REEL, 30 FOOT CORD, TRIPLE OUTLET (2630-3000)
$148.65
DESCRIPTION
The 2630-3000 retractable cord reel is designed to deliver reliable electrical power for automotive diagnostics, machine maintenance, and manufacturing workstations. Its overhead mounting system helps eliminate floor hazards while providing convenient power access throughout the workspace.
Key Features
- Ultra long-life spring motor

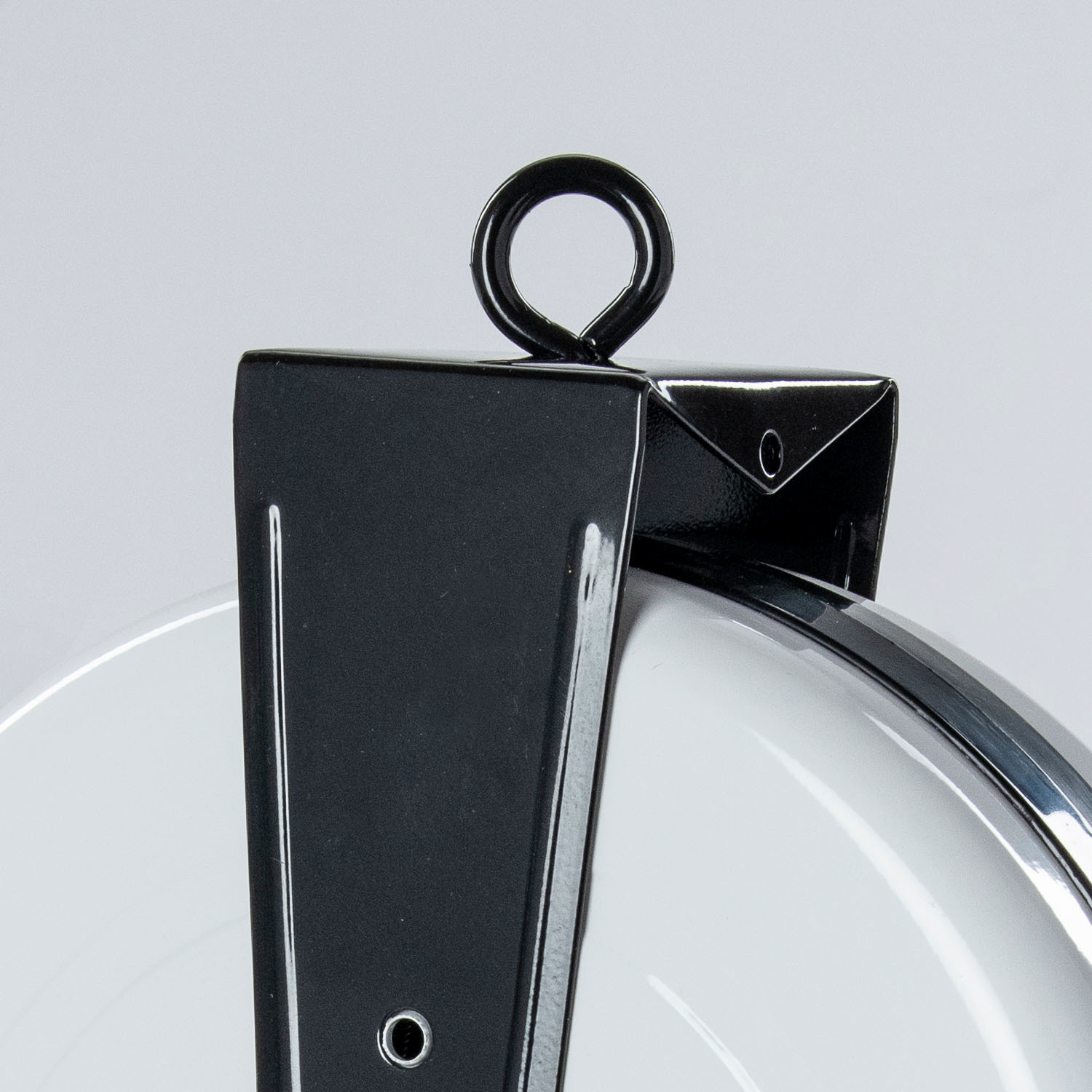

- Wall/ceiling mounting bracket included
- Baked on industrial finish

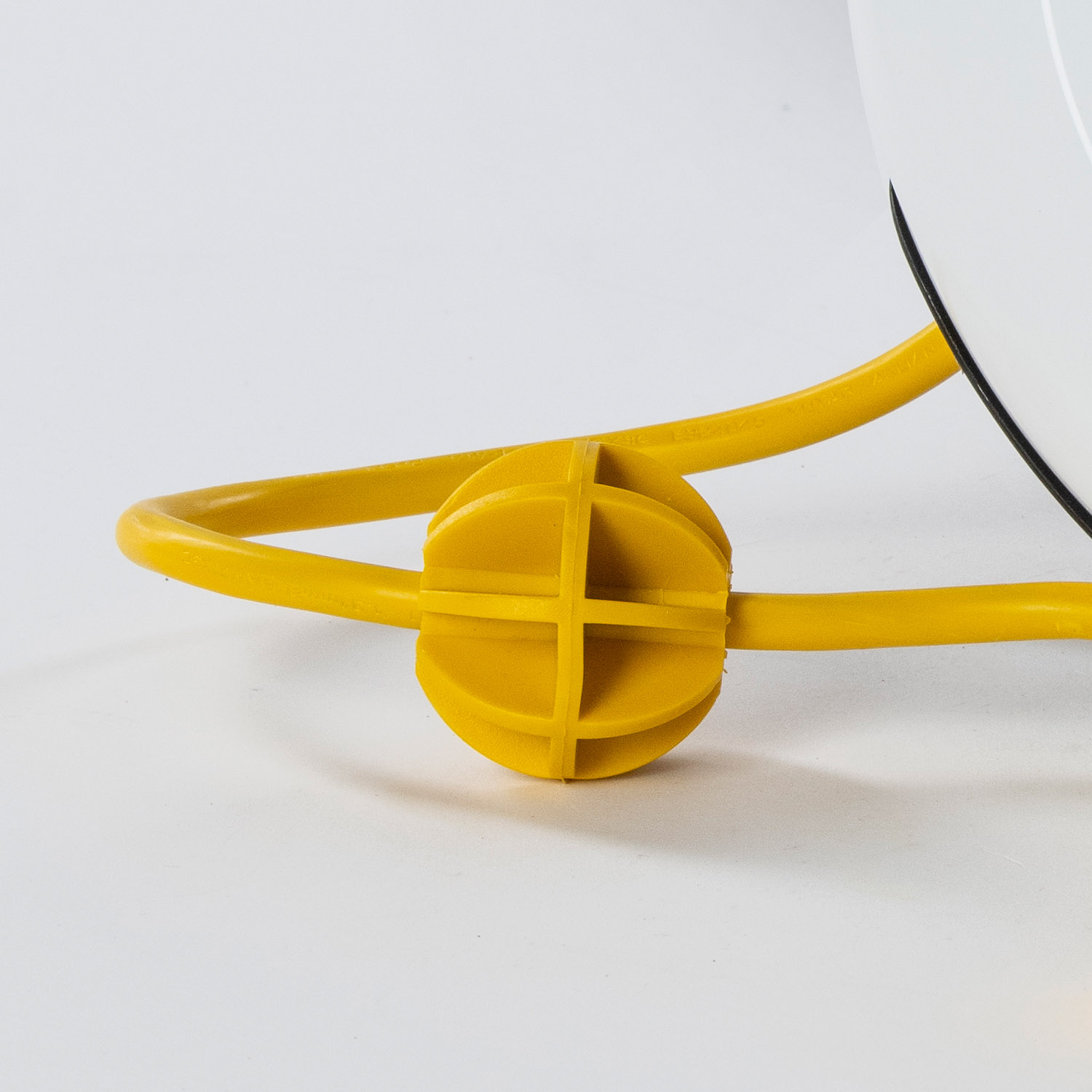

- Adjustable ball stop for desired hang down
- 30′ 16/3 SJT cord with triple outlet
- 24” pigtail with grounded plug
- 10 AMP circuit breaker is located at the tri-tap, not on the reel
- UL Listed
Product Specs
| Outlet Type | Triple Outlet 5-15R |
|---|---|
| Outer Tube Information | N/A |
| Switch Location | N/A |
| Included Accessory | N/A |
| Case Quantity | 4 |
| Cord Capacity (Amps) | 10 |
| Cord Conductor | 3 |
| Cord Gauge | 16 |
| Cord Length (Feet) | 40 |
| Cord Color | Yellow |
| Cord Type | SJTW |
| Plug Type | Molded NEMA 5-15P |
| Lamp Wattage | N/A |
| Lumens | N/A |
| Light Color | N/A |
| Model Amp Draw | 10 MAX |
| Model Anti Strobe | N/A |
| Model Hertz | 60 |
| Model Listings | UL Listed |
| Model Unit Size | 1 |
| Model Voltage | 120 |
| Run Time | N/A |
| Power Beyond (Y/N) | N/A |
| Charge Time | N/A |
| Replacement Lamp | N/A |
| Parts Available | YES |
| Reel Dimensions (L x W x H) | 9" x 3" x 11" |
| Reel Weight | 9.5 |
| Mounting Hardware | YES |
| Ball Stop | YES |
| Field Serviceable | YES |
